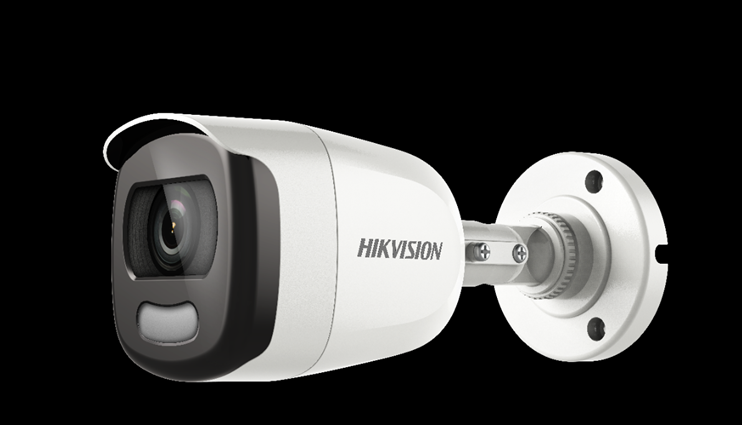

HIKVISION 2 MP COLORVU FIXED MINI BULLET CAMERA

2 MP ColorVu Fixed Mini Bullet Camera

• 2 MP full time color bullet camera
• 24/7 full color imaging
• Warm supplemental light with 20 m range
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

• Camera
• Image Sensor2 MP CMOS image sensor
• Max. Resolution1920 (H) × 1080 (V)
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
• Day & NightColor
• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
• Slow ShutterMax. 16x

• Lens
• Lens Type3.6 mm, 6 mm fixed lens
• Focal Length & FOV83.6° (3.6 mm), 52.8° (6 mm)
• Lens MountM16

• Image
• Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart light
• Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps>
• Wide Dynamic Range (WDR)130 dB
• Image EnhancementWDR, BLC, HLC
• Privacy Mask4 programmable privacy masks
• White BalanceAuto/Manual
• White LightUp to 20 m
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• Event
• Motion Detection4 programmable areas

• General
• MaterialMetal
• Dimension181.4 mm × 70 mm × 68 mm (7.14" × 2.75" × 2.68")
• Approx. 390 g (0.86 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Power Supply12 VDC ±25%
• ConsumptionMax. 3 W
• IR RangeN/A

• Approval
• ProtectionIP67
